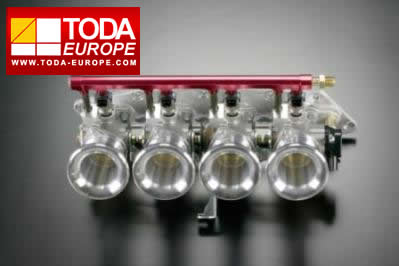

S2000 Toda Racing Sports Injection Kit

TODA sports injection kit improve engine response and power output, through the use of one throttle body per cylinder. Effective tuning per cylinder not compromised tuning with only one throttle body. Super response – The improvement of the accelerator response is due to the reduction in volume of air within the manifold. Increased power – Improved induction efficiency gives the engine the correct quantities of air/fuel on demand. Each intake is made the same length with straight induction ports. Individual throttle bodies are individually smaller in volume but collectively larger in volume, giving both low end torque and high end power. Airflow bench tested trumpets. Bottom & mid range Torque increase – Each cylinder receives a fuller charge of air/fuel especially at low to mid engine speeds. This is due to the independent throttle bodies and more effective injector positioning. Please note that injectors are not included.

PLEASE ADVISE TRUMPET LENGTH REQUIRED WHEN ORDERING.


< Modification > – 2013/11 For further improvement, the inside of intake manifolds are machined. This modification enables smooth surface and straight connection with cylinder head, which helps to improve performance. The cylinder head on the images is ported by us. Intake gasket is not placed for clear vision of inside.

An individual throttle for each cylinder. Gives super response, and improvements through out the rev range to both power and torque.
*The standard trumpet length is 88mm

F20C (S2000) Sports Injection KIT Throttle valve size: Ø50mm
Engine Type	F20C
Part No.	17100-F20-203	17100-F20-206	17100-F20-208
Price	£1950	£1950	£1950
Throttle valve size	ø50mm
Trumpet	33mm	63mm	88mm
Delivery pipe designed to be used with standard F20C/AP1 injector nozzle size. Please ask for the use for AP2 in advance. *Injectors are not included.
