K20 Toda Racing Stroker Kit

Description

K20 Toda Racing Stroker Kit

PLEASE ADVISE THE PISTON SIZE REQUIRED AT THE TIME OF ORDERING.

K20A CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR
TODA’s 2150cc capacity kit includes a well-balanced special crankshaft (90.7mm) along with a set of TODA forged pistons and I section strengthened connecting rods.
K20A Increased Capacity 2150 KIT I Type Engine Type K20A 2150KIT-I (2107) Option – Connecting-rod bearings Part No. 13001-K20-100-I Price (set) £3350 Bore×Stroke ø86.00×90.7mm ø86.00×90.7mm Displacement 2107cc 2107cc Crown Volume *1 7.6cc/7.6cc 7.6cc/7.6cc Projection Height *2 ±0mm ±0mm Reference C/R *3 Standard head GK t=0.6mmξ≈12.1:1 Standard head GK t=0.6mmξ≈12.1:1 Based on standard piston pin diameter. *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required.
Engine Type K20A 2150KIT-I (2132) Option – Connecting-rod bearings Part No. 13001-K20-101-I Price (set) £3350 Bore×Stroke ø86.50×90.7mm ø86.50×90.7mm Displacement 2132cc 2132cc Crown Volume *1 7.6cc/7.6cc 7.6cc/7.6cc Projection Height *2 ±0mm ±0mm Reference C/R *3 Standard head GK t=0.6mmξ≈12.2:1 Standard head GK t=0.6mmξ≈12.2:1 Based on standard piston pin diameter. *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required.
Engine Type K20A 2150KIT-I (2157) Option – Connecting-rod bearings Part No. 13001-K20-102-I Price (set) £3350 Bore×Stroke ø87.00×90.7mm ø87.00×90.7mm Displacement 2157cc 2157cc Crown Volume *1 7.6cc/7.6cc 7.6cc/7.6cc Projection Height *2 ±0mm ±0mm Reference C/R *3 TODA head GK t=0.6mmξ≈12.3:1 TODA head GK t=0.6mmξ≈12.3:1 Remarks TODA gasket (for DC5/EP3 or CL7) is required. (Standard head gasket can not be used.) Based on standard piston pin diameter. *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required.

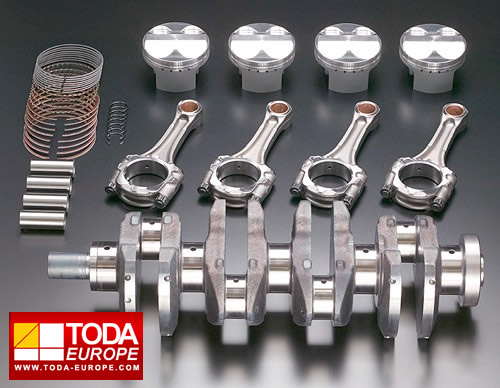

		KIT Contents 1 TODA forged piston KIT (ø86.0mm/ø86.5mm/ø87.0mm) 2 Special crankshaft (Long stroke, High accuracy dynamic balanced) 3 I section chrome molly connecting-rods (Fully floating with bush & balanced) (→Here is I section connecting-rods) 4 Connecting-rod bearings (Bearing clearance has been adjusted) <Option>
