Description

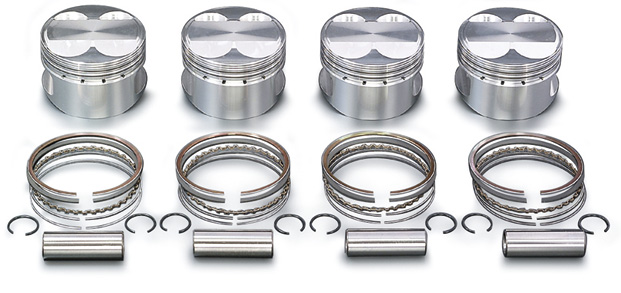

4AG 4 Valve Toda Forged Pistons
PLEASE STATE PISTON SIZE AND PIN SIZE AT THE TIME OF ORDERING.
| 4AG 4valve LEVIN, TRUENO |
 |
|
| 4AG (4 valve) High Comp Forged Piston KIT (pin size 18mm) | | Engine type | 4AG 4 Valve (pin size 18mm) | | Part No. |
13010-4AG-000 | 13020-4AG-000 | 13040-4AG-000 | | Price (set) | £715 | £715 | £715 | | Bore | ø81.00mm | ø81.25mm | ø82.00mm | | Displacement | 1587cc | 1597cc | 1627cc | | Crown Volume *1 | 3.96cc/3.7cc | 3.96cc/3.7cc | 3.96cc/3.7cc | | Projection Height *2 | -0.05mm | -0.05mm | -0.05mm | | Reference C/R *3 | Standard head GKξ≈11.0:1 | Standard head GKξ≈11.1:1 | Standard head GKξ≈11.3:1 | *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required. |
| 4AG (4valve) High Comp Forged Piston KIT (pin size 20mm) | | Engine type | 4AG 4Valve (pin size 20mm) | | Part No. | 13010-4AG-001 | 13020-4AG-001 | 13040-4AG-001 | | Price (set) | £715 | £715 | £715 | | Bore | ø81.00mm | ø81.25mm | ø82.00mm | | Displacement | 1587cc | 1597cc | 1627cc | | Crown Volume *1 | 3.96cc/3.7cc | 3.96cc/3.7cc | 3.96cc/3.7cc | | Projection Height *2 | -0.05mm | -0.05mm | -0.05mm | | Reference C/R *3 | Standard head GKξ≈11.0:1 | Standard head GKξ≈11.1:1 | Standard head GKξ≈11.3:1 | *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required. |
|
|
