Description

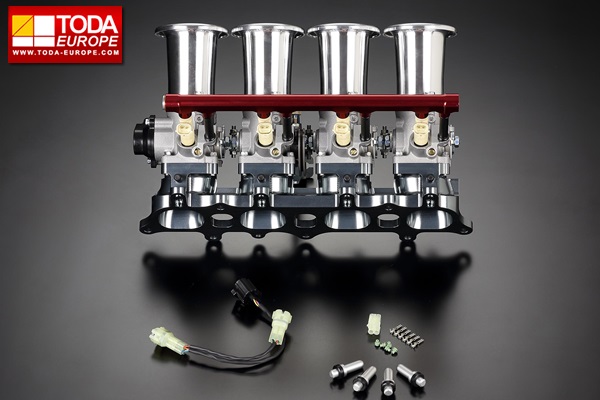

3SG Toda Racing Sports Injection Kit – Altezza SXE10.

TODA sports injectors improve engine response and power output, through the use of one throttle body per cylinder. Effective tuning per cylinder not compromised tuning with only one throttle body.

* Super response – The improvement of the accelerator response is due to the reduction in volume of air within the manifold.
* Increased power – Improved induction efficiency gives the engine the correct quantities of air/fuel on demand.

1. Each intake is made the same length.
2. Straight induction ports.
3. Individual throttle bodies are individually smaller in volume but collectively larger in volume. Giving both low- end torque and high-end power.
4. Airflow bench tested trumpet.

* Bottom & mid range Torque increase – Each cylinder receives a fuller charge of air/fuel especially at low to mid engine speeds. This is due to the independent throttle bodies and more effective injector positioning. .
This part comes from Toda Racing Japan.

TODA sports injection improve engine response and power output, through the use of one throttle body per cylinder. Effective tuning per cylinder not compromised tuning with only one throttle body.

Super responsive
– The improvement of the accelerator response is due to the reduction in volume of air within the manifold.

Increased power
– Improved induction efficiency gives the engine the correct quantities of air/fuel on demand.
– Each intake is made the same length.
– Straight induction ports.
– Individual throttle bodies are individually smaller in volume but collectively larger in volume. Giving both low- end torque and high-end power.
– Airflow bench tested trumpet.

Bottom & mid range Torque increase
– Each cylinder receives a fuller charge of air/fuel especially at low to mid engine speeds. This is due to the independent throttle bodies and more effective injector positioning.

*With 88mm long trumpets
*Fuel injectors not includedAn individual throttle for each cylinder. Gives super response, and improvements through out the rev range to both power and torque.

3SG(SXE10) Sports Injection KIT (Throttle valve size: Ø50mm)
Engine Type	3SG(SXE10)
Part No.	17100-3SG-503	17100-3SG-506	17100-3SG-508
Price	£2500 <Made to order>
Trumpet	33mm	63mm	88mm
*Fuel injectors are not included. – Designed to use STD shape SXE10 injectors: Aftermarket higher fuel rate injectors are required. Due to different tuning requirements, we are not able to specify injectors to be used. – Stock air flow meter can not be used with this kit. Aftermarket ECU is required, as well as a modified wire harness. – The kit shown in the above images is only provided. Customers need to have technical knowledge to set up a high performance multi bodied injection kit.
