Description

Honda RSK FK7 Civic 1.5T

【RACING SUCTION】

Code No. 70020-AH111

The most powerful intake system carefully designed to fit engine room of a vehicle. HKS Racing Suction pushes air intake system efficiency to the limits.

Stealth frame is redesigned!

“Hyper Stealth Frame” exceeds the performance of previous Super Stealth frame.
Increasing air intake surface area by 27% improves air intake efficiency.

Bold white HKS logo printed on black anodized back plate accentuates the engine bay!

The outer edge of the funnel is securely fixed to the aluminum back plate. Use of aluminum significantly improves rigidity and durability. Alumite process improves surface of the funnel and also provides a sleek black look.

Real sports

TECHNOLOGY

Vehicle specific suction pipe design.
Angle and length of pipe enhance the induction efficiency.
It is effective for quick response for NA engines and higher performance for turbocharged engines.

Point

With stock suction system, induction air hit to corrugated portion of hose and makes swirl and resistance. The specially designed pipe reduces corrugated portion and gap inside pipe to make air flow smoother.

Features

Frame Support
Fits flexibly to aluminum back plate, securely fixes hyper stealth frame. It also serves as a guide for attaching the filter to the hemispherical surface, improving maintainability such as filter replacement.
Racing suction adopted wet two-layer type
The filter element is a wet 2-layer polyurethane form impregnated with a special high viscosity adhesive.
Filter porosity is designed as large as possible to provide high air intake flow efficiency without sacrificing filtration ability.
* Dry type three layer type exchange filter can also be used
Super Inner Frame
The cross section of the inner frame is streamlined with 16 frames parabolically placed towards the center.
Simple lightweight frame design provides smoother air flow.
Super Lip Funnel
The defining feature of HKS intake: “Super Lip Funnel”.
Super Lip Funnel maximizes air intake surface area in the limited space in the engine bay and optimizes air intake efficiency.

HKS Racing Suction is a high efficiency air intake device and may cause irregularities in the engine work. HKS recommends considering a total tuning concept combining this product with a sport exhaust system and a suitable engine setting.

■Direct Throttle（Compressor）intake Mounting

Replacing all necessary parts between the HKS air cleaner assembly and the throttle (to the compressor housing on turbo cars) allows eliminating air intake restrictions and increasing air intake efficiency, providing a dramatic improvement in engine response and performance. Exclusively for some vehicles only, a direct type Super Power Flow air cleaner assembly is available. It provides a smooth air flow from the entrance point of the filter to the throttle valve.

Racing suctions combines SUPER POWER FLOW (an open type filter ) with aluminium pipe to improve air intake efficiency.

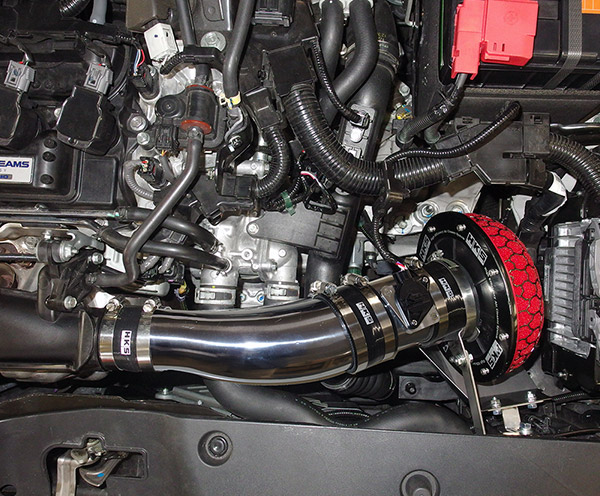

Honda RSK FK7 Civic 1.5T

■Components

components

■Features

Kit includes Super Power Flow and Aluminum Suction pipe for CIVIC.
Improving an air intake efficiency, HKS changed from flexible rubber hose of the stock to aluminum pipe.
Polished aluminum pipe improves engine room appearance.
Improve air flow through all RPM range.
Enjoy a distinctive induction sound.

■Performance

*In-house data/Vehicle with FK7, LEGAMAX Premium

performance graph

Installing Racing Suction improves boost but it is more effective to combine it with the Flash Editor, difference is especially notable at 2,000 to 4,000 rpm range.

Vehicle	Classification	Model	Engine	Model Year	Style	Size	Code No.	Manual	Remarks
Vehicle	Classification	Model	Engine	Model Year	Style	Size	Code No.	Manual	Remarks	CIVIC	DBA-	FK7	L15C	17/08 -19/12	Racing Suction	Φ200-80/Red	70020-AH111		6BA-FK7 not confirmed.
